UV-LED Spot P: Compact and powerful UV-LED spot light source for industrial applications

The UV-LED Spot P is a focusable UV LED spot light source for automated and manual bonding. Measuring Ø 15 × 143 mm, it reaches irradiances of more than 39,000 mW/cm² at the working distance and therefore allows extremely short process times. The typical service life is 20,000 h; according to DIN EN 62471:2009-03 the spot is classified in risk group 3.

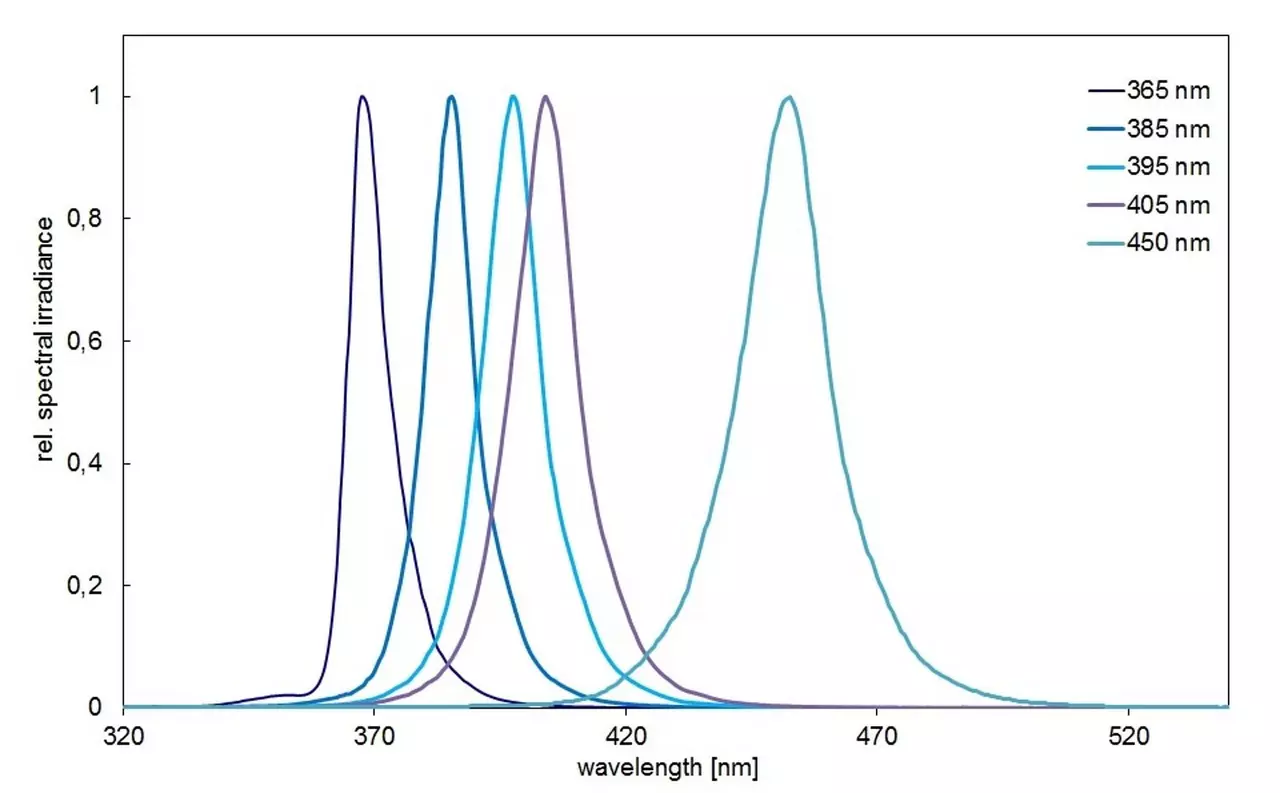

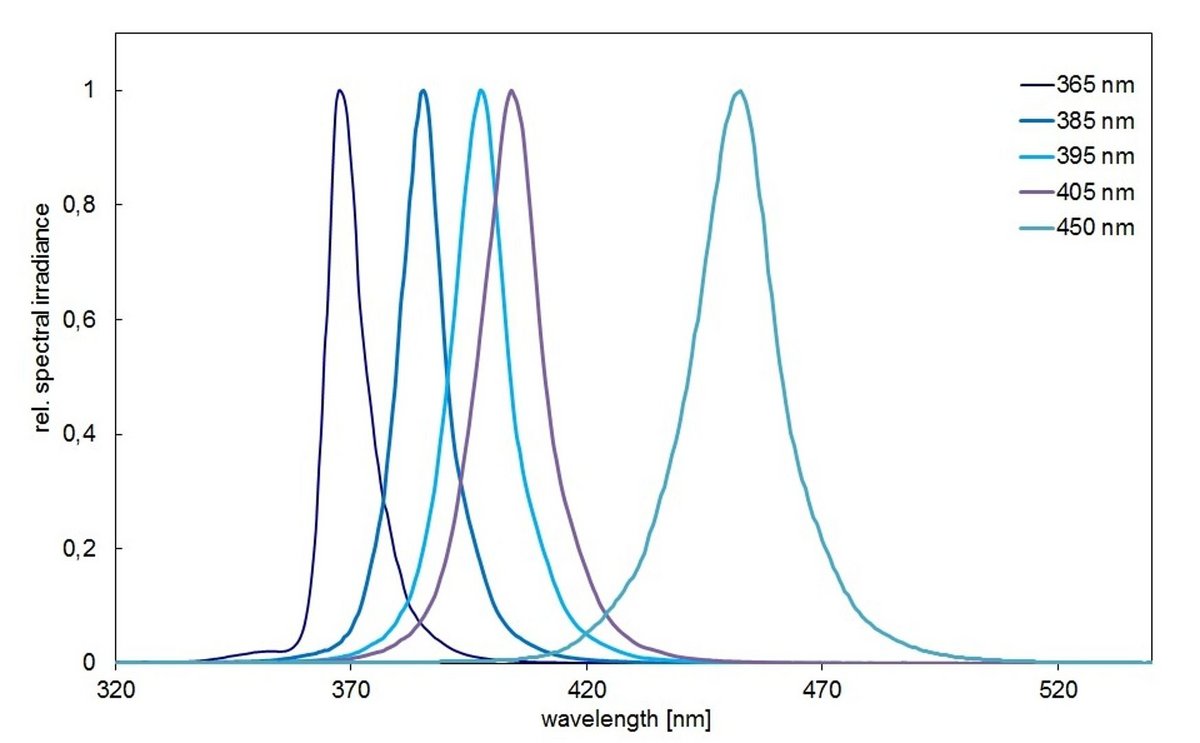

For applications such as bonding, potting or fluorescence excitation, the wavelengths 365, 385, 395, 405 and 450 nm are available. With the variety of wavelengths as well as the exchangeable optics, you remain particularly flexible and can upgrade and change over at any time.
For controlling the UV-LED Spot P, we offer the LedControl S as a table top device or the LedControl DC for DIN rail mounting.

With the LedControl S and DC UV LED controllers, the ultraviolet LED output can be set between 2% and 100%.

A timer for irradiation times between 0.01 s and 9999 s is already integrated. Optionally, continuous operation or externally triggered operation are available.
Both LEDControl systems can be controlled via RS485, USB or RS232. Additional digital and analog PLC inputs are also available as an option.
Due to the operation with safety extra-low voltage the LedControl DC is easy and safe to integrate into PLC systems.

Applications of UV-LED spots LedControl

• Industrial UV curing and bonding
• IC Encapsulation
• UV sealing
• Hairline / leak detection using fluorescence markers
• Fluorescence Spectroscopy
• Surface Inspection
