Laboratory radiometer RMD Touch

The RMD Touch is a laboratory radiometer for the simultaneous measurement of UV irradiance, UV dose and illuminance with up to two sensors. Each channel uses a 24-bit ADC and multi-stage amplification; typical measuring ranges are 0–10 W/cm², a dose up to 100 MJ/cm² and 0–500,000 lx. It is operated through a 5-inch touch display, and measurement series are written to a USB stick.

This incorporates the latest technologies such as capacitive touch displays, precision ADCs, data storage, remote update capability and much more. This makes the RMD Touch one of the most powerful multichannel radiometers on the market with superior features such as the highest accuracy, reliability and modular extensions.

The RMD Touch allows simultaneous measurement with multiple sensors and recording of irradiance and dose.

Each sensor channel contains a high-precision 24-bit ADC and a multi-stage amplification to achieve a wide dynamic range of up to 7 orders of magnitude. The measurement of all channels is performed simultaneously. Calibration and sensor information are permanently stored in the sensor and are automatically transferred to the RMD Touch. This makes the RMD Touch the perfect measuring instrument for all laboratory applications.

The RMD Touch also has a wide range of sensors. The radiometric sensors are long-term stable, robust and suitable for many applications.

The sensors can be connected to the laboratory radiometer RMD Touch and to the mobile radiometers RMD & RMD Pro.

Applications:

• UV radiometry
• low-light detection
• LED measurements
• germicidal UVC radiation and disinfection (UVGI)
• optical hazard analysis
• lifetime measurements
• plant photobiology
• phototherapy
• UV curing
• and many more

Optical measuring systems usually consist of the radiometer, a sensor with filter and cosine-corrected optics, and a calibration that allows a direct reading in the corresponding units. The sensor memory contains all sensor identifications and the calibration history. The sensor also contains a temperature sensor.

The RMD Touch is operated by a high-resolution capacitive touchscreen. A powerful Cortex ARM processor ensures durability and remote update capability. This means that new functions can be installed directly on site.

The RMD Touch and the PC software are Windows 10/11 compatible. The fully digital interface communicates with the PC via USB.

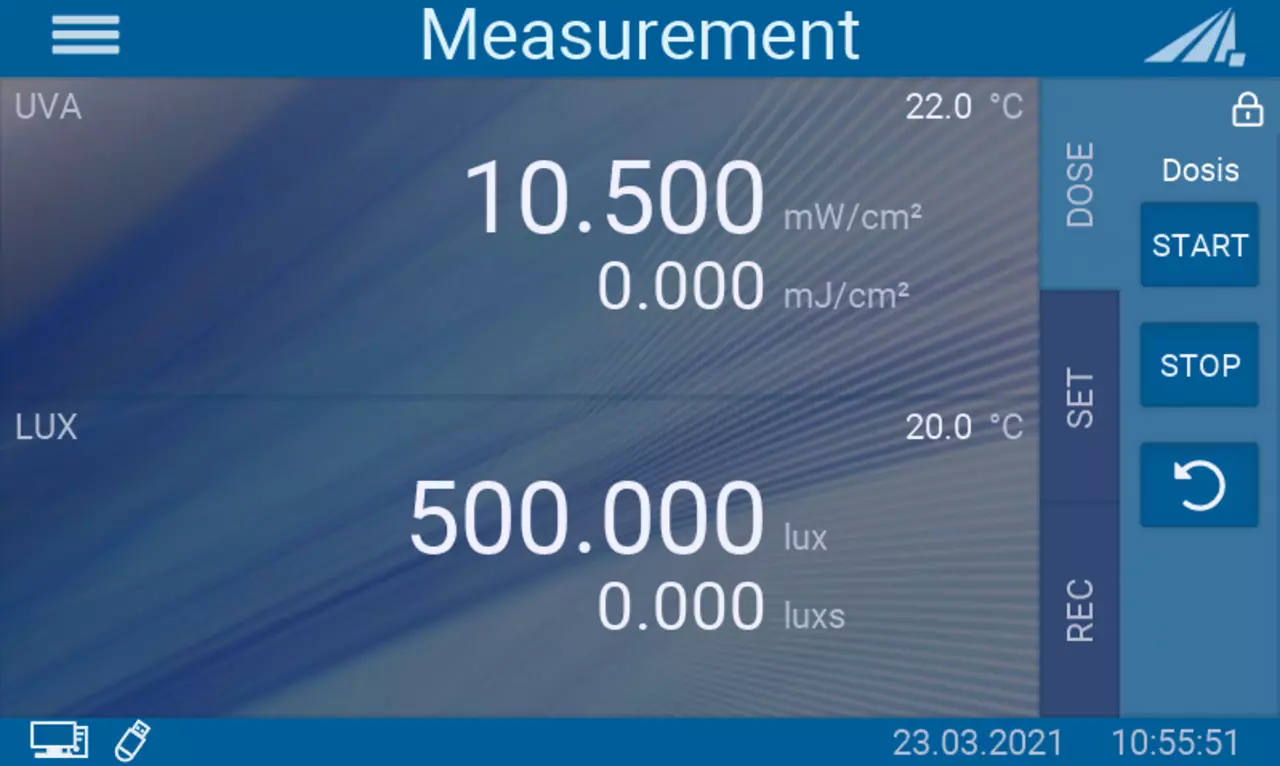

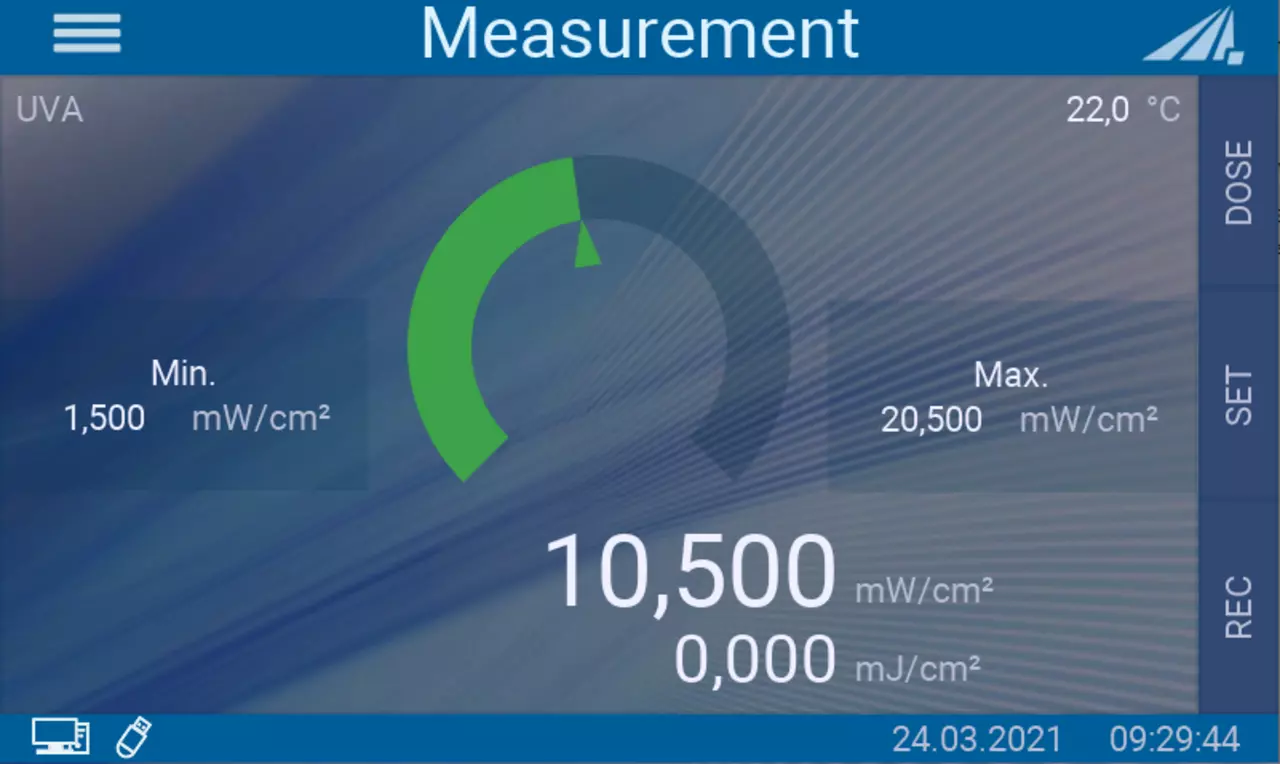

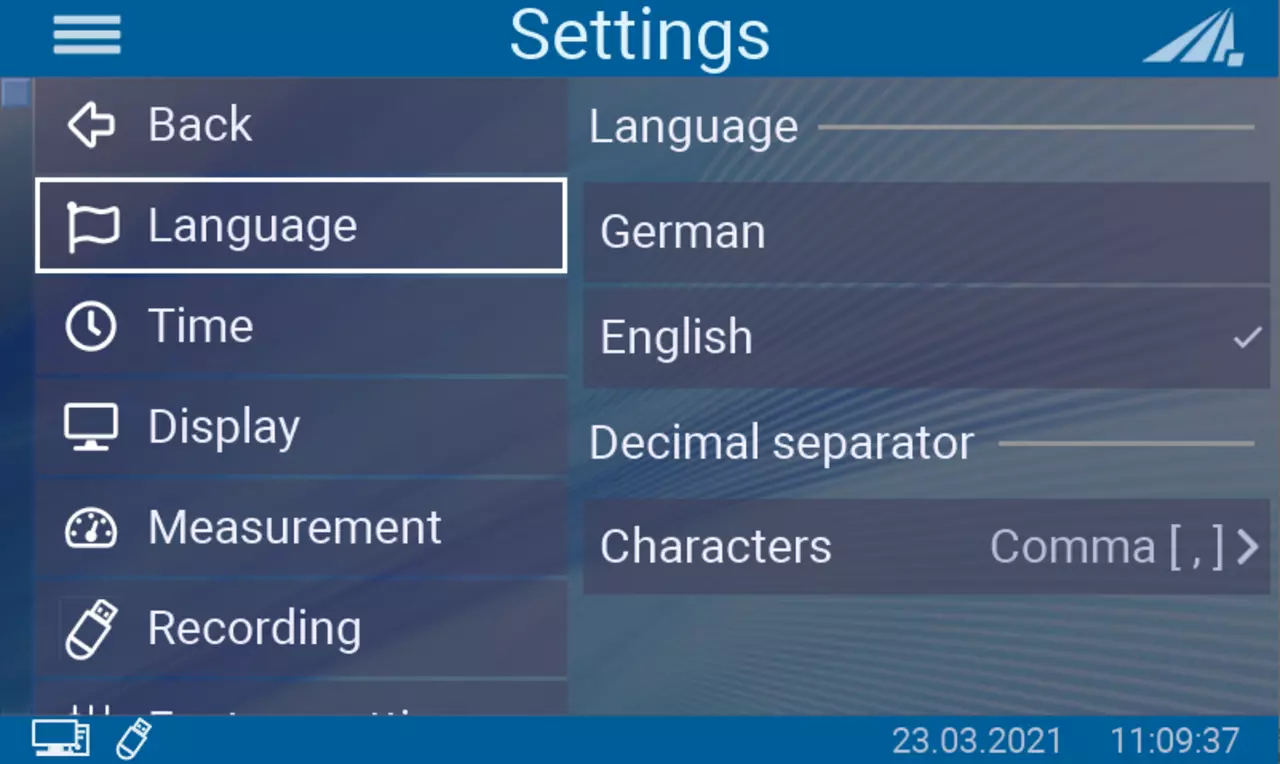

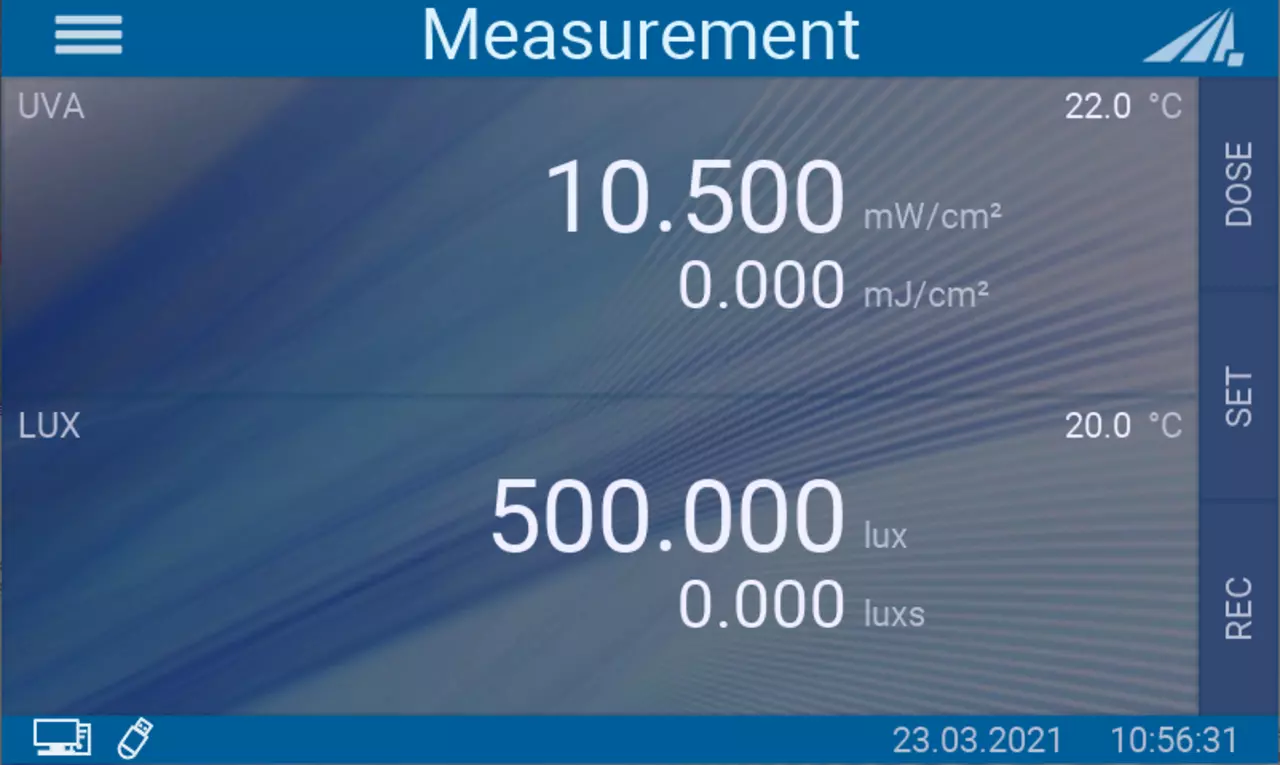

The evaluations and units, such as W/m², µW/cm², J/m², lux and klx, are adjustable. Numerical and graphical single and multi-channel measurements, oscillograms and data logger measurements such as min/max and other measurement modes are clearly displayed. The parameterization is done intuitively directly on the RMD Touch and is password protected.

The RMD Touch can be easily used in laboratory, pharmaceutical and industrial environments. With the associated software, the RMD Touch can be controlled from the PC. The meter records measurement data directly to a USB stick for up to 1000 days at a time.

The resolutions given in the technical data are display resolutions. The actual detection limit is determined by the sensor's noise equivalent power and depends on the selected measuring range; for high-sensitivity sensors it is typically around 25 µW/cm².
